Why Yanhua Digimaster3 Occurs “(1E0F) Not find device” Error?

Question

I tried to connect Yanhua Digimaster 3, but the ICP adapter is not responding. The LED light won’t light up and it gives me an error: “(1E0F) Not find device”.

This is my connection, what’s the problem, please help.

Engineer Replies

The reason why Digimaster3 failed to connect is because of the touching pin on board. This kind of pin is in bad contact. It is suggested to use wiring for connection.

In case you have same problem, simply check the connection carefully. Make sure your wiring is connected to correct position.

Digimaster III poor contact issue was solved.

Thanks to www.obd2shop.co.uk

Can Yanhua Mini ACDP Program BMW DME/CAS Replacement?

The answer is yes. Both BMW DME and CAS module replacement are supported to be programmed via Yanhua Mini ACDP.

How to program BMW DEM replacement?

Question

Hi, I have a 2008 BMW 328i. I need to replace DME with used DME. Can Mini ACDP do this via OBD2? Or should I remove DME or CAS from the vehicle?

Answer

Yes. Mini ACDP Master BMW is able to read and write CAS ISN for DME replacement via OBD directly. No need to remove the module.

Path as below:

OBD mode >> Read/Write CAS ISN(replace DME)

Here is allowed to identify CAS info, downgrade CAS programming, replace DEM of 32-bit ISN, replace DME of 4-bit ISN, read EGS-ISN/DME-ISN/CAS-ISN, write EGS-ISN/DME-ISN/CAS-ISN, reset CAS system.

Just follow the “Help” on the right side for programming.

How to program BMW CAS replacement?

Question

Can Mini ACDP backup data from the old CAS3 and write to the new CAS3 module?

Answer

Yes. Mini ACDP BMW is able to read/write EEPROM & FLASH on bench. The CAS3 module should be disassembled.

Go to “Read/write CAS data”, here you can perform read EEPROM & FLASH from old CAS3, then write EEPROM & FLASH to new CAS3. Just follow the Help.

You may like:

Replace BMW FEM/BDC Module, What Tool Recommended?

http://blog.obd2shop.co.uk/replace-bmw-fem-bdc-module-what-tool-recommended/

Technical support: www.obd2shop.co.uk

Solved! Yanhua Mini ACDP Read BMW CAS3/3+ Memory Decryption Failed

Problem

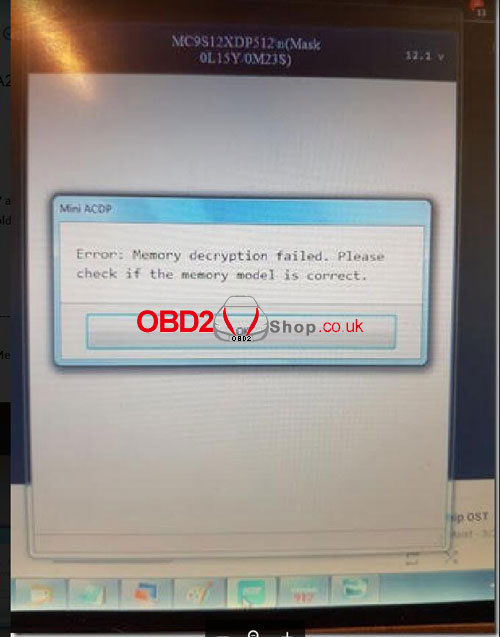

My Yanhua Mini ACDP Master will not read BMW CAS3, 0L15Y always has memory decryption error, 0L01Y has an error with connection board targets. No method to read CAS3 with ICP solderless adapter. It says: “ Error: Memory decryption failed. Please check if the memory model is correct.”

CAS3 – 0L15Y: Pin detect good, always error with Memory decryption. CAS3 board is V2, No C_GND pin.

CAS3 – 0L01Y: Always pin detect error on ETX.

CAS3 Adapter board makes contact with the wrong pin.

For example, 0L15Y, good pin detection, but CAS 0L01Y has a pinned target in the wrong place, the capacitor blocks the signal.

Sometimes, the CAS3/3+ reading error may say: “Analyze the data error. Please check this CAS is a new CAS or blank CAS.” as well.

Solution

If the above problems occurred, the decryption progress bar will reach 100%. But in normal cases, the chip decryption progress bar will not reach 100%. So it is necessary to check whether the C-GND probe on the interface board is removed or cut. Reinstall the interface board to read the data once.

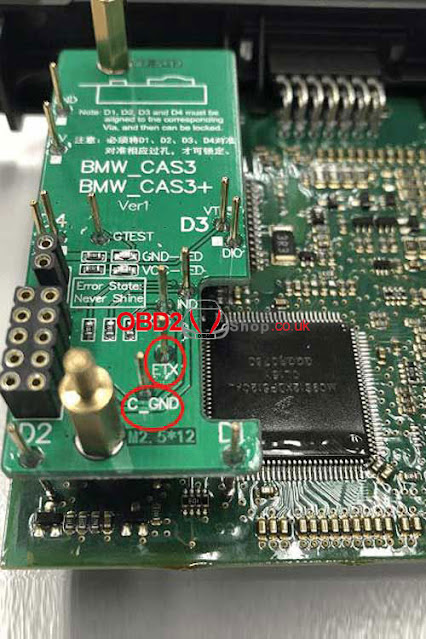

The C-GND pin interface board locations are shown as below:

Updates

Thanks to the Obd2shop engineer, the problem was solved!

I can use Yanhua ACDP BMW to read CAS3 decryption data now.

https://www.obd2shop.co.uk/

How to Register & Activate Yanhua Mini ACDP Programming Master?

This is a tutorial on how to start Yanhua Mini ACDP Programming Master, including registration, activation, language switch & operation learning.

How to register & activate?

Download Mini ACDP app on smartphone, go to

Me >> Login >> Register >> Input info (phone, password, name & mail)

Note: the password must include letters, numbers & symbols.

The ACDP ID & SN code are right on the device, you can scan the OR code directly or manually input it.

Remember to select “Agree software licensing and service agreement”.

Press “Sign up now”.

Congratulations!

Registration succeeded.

Now ACDP device was activated, you can start to use it.

Please keep in mind the info you registered for.

How to switch the language?

System settings >> Language

It supports English & Chinese.

How to start ACDP?

1. Check FAQ

Technicians >> ACDP sales FAQ/ ACDP technical FAQ

2. Press “Learning”.

Here are a lot of videos about ACDP operations you can learn from.

Yanhua Mini ACDP car key programming no longer needs soldering iron, supports to program module on BMW, Mercedes Benz, Audi...etc. For full configuration, please choose Full Set YANHUA Mini ACDP.
