Yanhua Mini ACDP + Module 13 Clone VW Audi DQ200/250 Gearbox

Yanhua Mini ACDP + Module 13 is supported to clone VW(Volkswagen), Audi DQ200(0AM/0CW), DQ250(02E/0D9), DL382(0CK), DL501(0B5), VL381(0AW) models, etc. Here is taking Audi DQ200 & DQ250 gearbox clone as demonstration.

Check our Youtube:

VW Audi DQ250 Gearbox Clone

Click “Help” to find connection info.

Required Accessories:

DQ250 module

OBP+ICP adapter

ACDP host

DQ250 interface board

20PIN cable

Connection

1.Install DQ250 interface board.

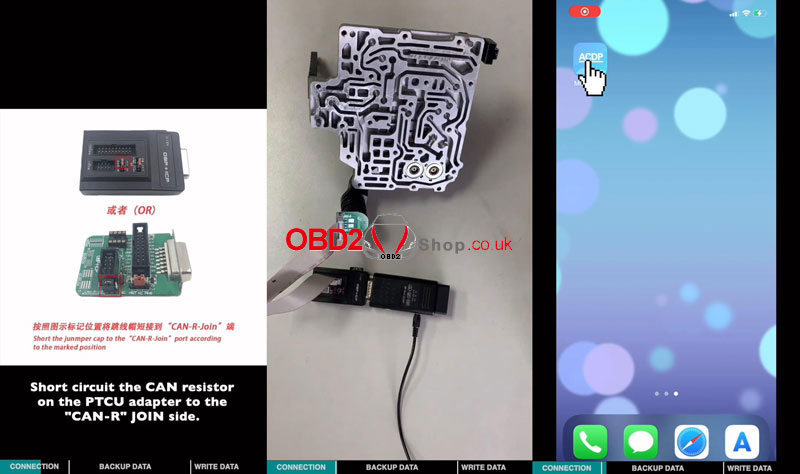

2.Short circuit the CAN resistor on PTCU adapter to the “CAN-R” JOIN side.

3.Connect OBP+ICP adapter, interface board & ACDP host.

Operation

Mini ACDP >> VW >> Gearbox clone >> Audi >> Confirm model & SN >> DQ250(02E/0D9) >> Full backup

Follow the instruction, then click “OK”.

1.Connect ACDP with Gearbox.

2.This function needs to be connected to the Internet. Make sure the network is good.

Confirm the gearbox model, continue >> OK

Backup file succeeded(record its filename & location).

OK >> OK

Connect another DQ250 gearbox & prepare to write the original data.

Full write >> OK >> Continue >> OK >> Select the backup data saved before

Writing PFLASH data...

Writing EEPROM data...

Data wrote successfully!

VW Audi DQ200 Gearbox Clone

Click “Help” to find connection info.

Required Accessories:

DQ200 module

OBP+ICP adapter

ACDP host

DQ200 interface board

20PIN cable

Connection

1.Install DQ200 interface board.

2.Short circuit the CAN resistor on the PTCU adapter to the “CAN-R” JOIN side.

3.Connect OBR+ICP adapter, interface board & ACDP host.

Operation

Mini ACDP >> VW >> Gearbox clone >> Audi >> Confirm model & SN >> DQ200(0AM/0CW) >> DQ200Dxx/DQ200_MQB (Choose depend on SN, check Help) >> Full backup

1.Connect ACDP with Gearbox.

2.This function needs to be connected to the Internet. Make sure the network is good.

Confirm model, continue >> OK >> OK

Backup file succeeded.

Please record the file name & location.

Connect another DQ200 gearbox & prepare to write the original data.

Full write >> Follow the instruction, OK >> Confirm model, continue >> Select the backup data saved just now

Writing PFLASH data...

Writing EEPROM data...

Data wrote successfully!

The Yanhua ACDP Module 13 has replaced the traditional wire method to be more simple & efficient. Plug & play to support Seat, Skoda as well.
