How to get BMW ISN with Yanhua ACDP and Module 3

Here is feedback from our real customer:

Hi, Elyza. What must I do to get ISN with ACDP 2 + Module 3? I have a job where all keys are lost.

Yanhua engineers checked and replied:

Read ISN need to buy Module 3 + X5 Board, follow the instruction operate:

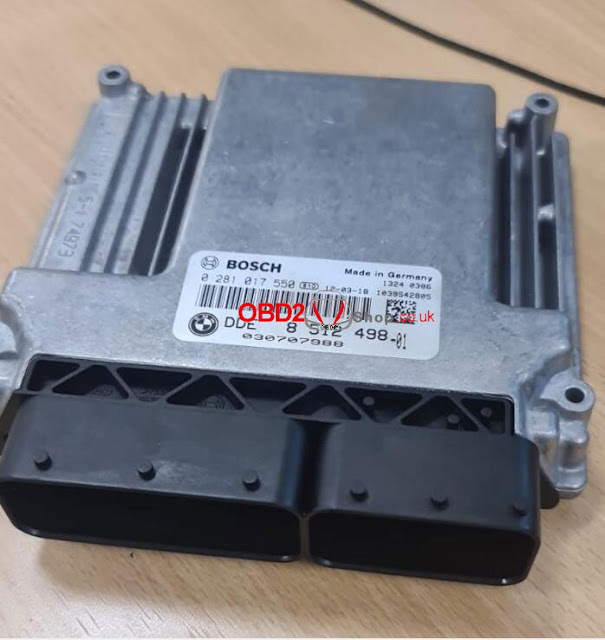

Step 1. Please prepare ACDP, 20Pin cable, interface board, and DME.

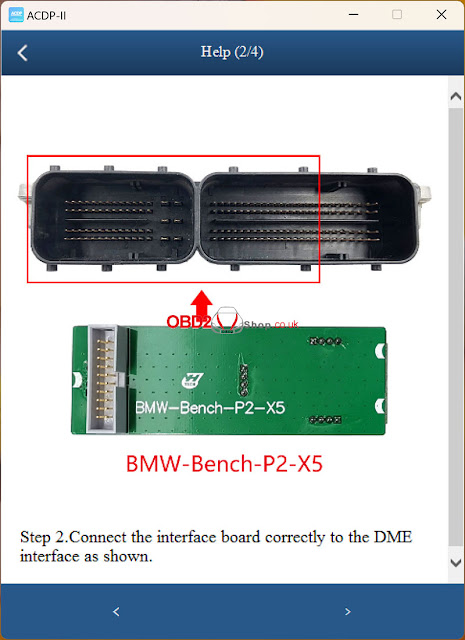

Step 2. Connect the interface board correctly to the DME interface as shown.

Step 3. Short the jumper cap to the "CAN-R" port according to the marked position.

Step 4. Connect ACDP, 20Pin cable, interface board, and DME.

Done!

For more info please visit www.obd2shop.co.uk

(Fixed) Software error when ACDP 1 authorization is transferred to ACDP 2

Recently, we received feedback from a customer saying that after his ACDP 1 authorization was successfully transferred to ACDP 2, the software had an error and could not be used normally:

On Android, it shows "The program verification is abnormal".

On the iPhone, it shows an "unknown error".

The technician gave a solution: clear the cache and then enter the software again.

Customer feedback: I have tried this before. I tried again. Same issue. I need to use this as soon as possible as I have customers waiting.

Finally, we helped the customer contact the factory technician for remote support and found out that there was a bug in the authorization transfer software. The technician helped to fix it. After clearing the cache again, the software works fine.

Customer feedback:

Perfect it worked.

I appreciate your help very much!

For more technical service support, please visit www.obd2shop.co.uk

Yanhua Mini ACDP Module 33 PCF Adapter Upgrade Tutorial

This tutorial is on upgrading the Yanhua Mini ACDP Module 33 PCF adapter step by step. If you're unable to learn the key or got the key learning fault with Mini ACDP-2, this can help solve the problem.

Check the video to view the detailed operation:

How to Upgrade ACDP Module 33 PCF Adapter?

Power on & open Mini ACDP.

The device number is displayed in the top right corner, indicating that the device is connected.

Slide the page to the bottom.

Special function >> Adapter upgrade >> Help for PCF-KEY Upgrade

Connect the PCF-KEY adapter to the ACDP device.

Click "PCF-KEY Upgrade".

Please use the ACDP standard power adapter(voltage+ 12V, current >= 2.5A).

Please insert the PCF-KEY adapter.

Check the current version and the latest version number.

If inconsistent, click "Yes" to upgrade to the latest version.

The upgrade adapter is complete.
